Model VS Parameters

Model	SHTTSE-35	SHTTSE-55	SHTTSE-65
capacity	11	400 – 600KG/h	800 – 1000KG/h
Screw Diameter	35	50.5	62.4	Selected rigid alloy material, global hardness 60+5,which is 10 times harder than ordinary materials.
Length L/D	20	20	20
Main Motor Power	15KW	37KW	55KW	IP55 / SIEMENS / ABB efficiency class IE2 1500rpm/380v
Revolving Speed	400-600			No leaking found after 50000h running.
High Torque Gear Box	2X900Nm			More than two times of the torque of the same industry
Feed	1.5KW Variable frequency,double-screw feeder			More stable,magnetic device isoptional

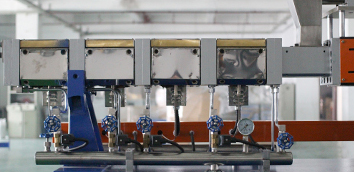

Temperature Control	4-class,individual control			Meet more complex process requirement
Heat-Power	10KW	16KM	18KW	Fast heating-up, more energy-saving
Boundary Dimension	2060x500x1350	2660x700x1550	3060x750x1950	Compact design to save space
Weight	900KG	1800KG	2200KG
Operation Noise	<75db

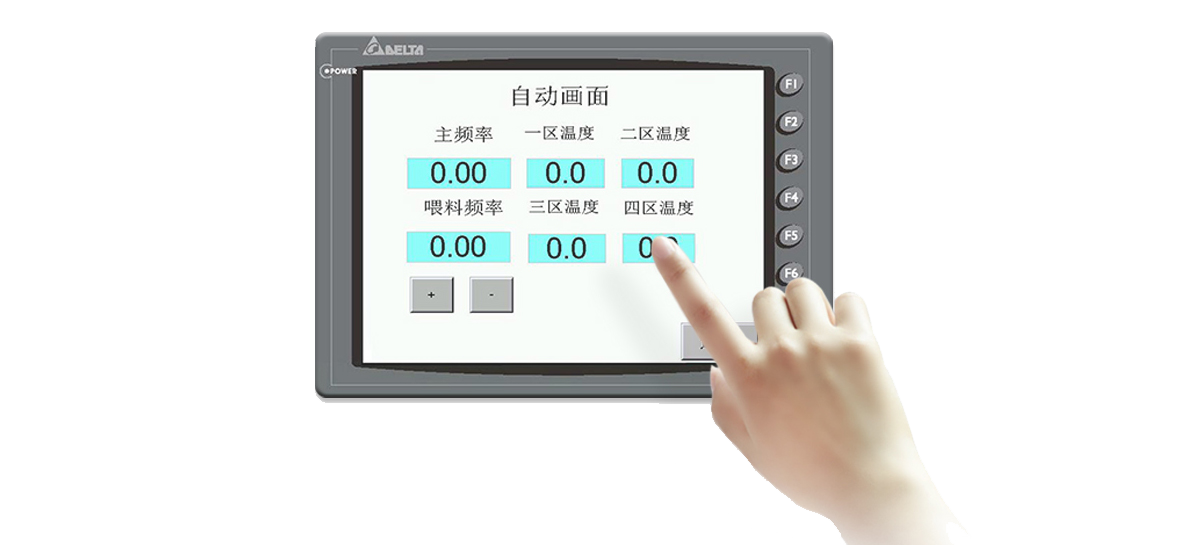

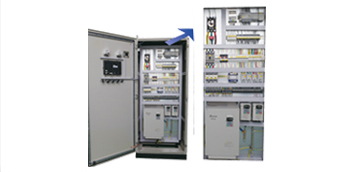

Control	SIEMENS /ABB /Schneider control elements,PLC programing, interactive interface, button start- stop, data storage and operation record
